Photos may show optional equipment.



w/ 150 L Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
View Price w/ Prep & Freight:

Dominate inshore and nearshore

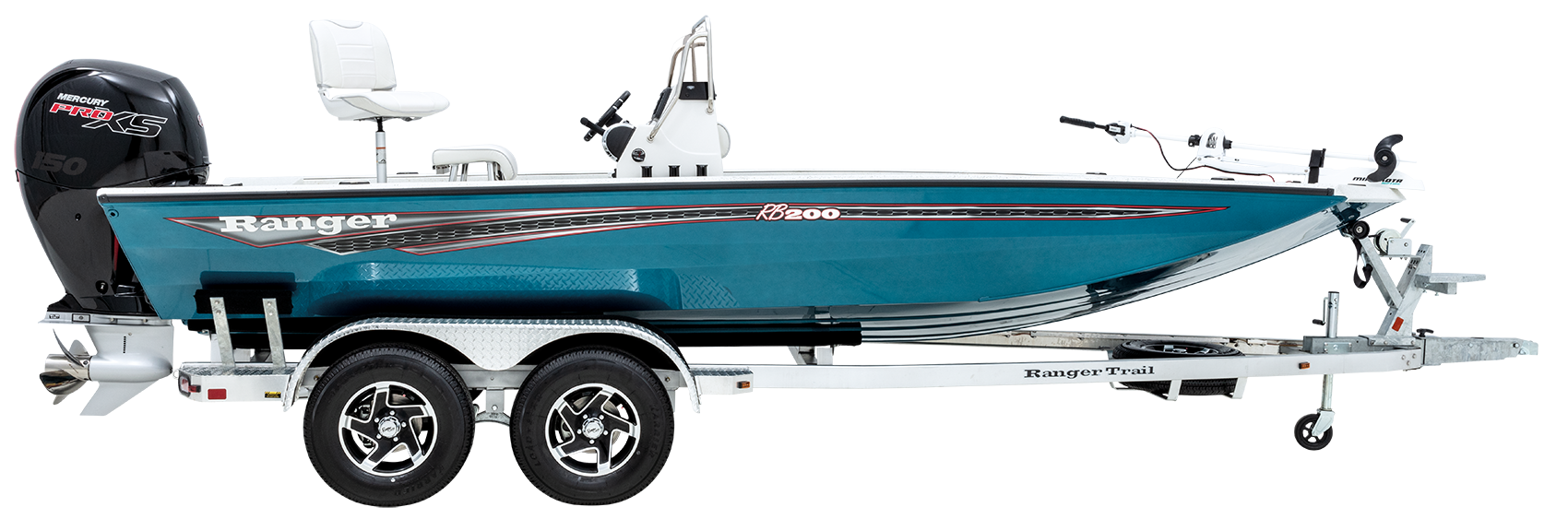

The RB200 packs more muscle in a bigger hull for greater performance, stability and capability to take you further than ever. The pad-bottom hull is designed for a dry ride that planes in a hurry, even in the shallows. The all-welded hull delivers strength in chop while precision steering and throttle control give you the ultimate in command. The wide, stable front casting deck delivers huge room for multiple anglers, and the interior is perfectly tailored for taking on inshore fisheries or a bass tournament with dual livewells and rod boxes, a huge in-deck storage and storage under the rear jump seats. At the helm, electronics up to 9" may be flush mounted and membrane-style switching delivers convenient simplicity. The ruggedized Ranger Trail® trailer is constructed with all-welded aluminum for the utmost in corrosion-resistant strength. Diamond plate fenders offer a step up and protection from road debris. A new camo version is more than just a paint scheme, this special rig features blacked-out badging, matte black closures and console railing, along with an all-black steering wheel for maximum concealment. No matter where your quarry swims, the enhanced capability of the RB200 is designed to Dominate Inshore and Nearshore.

Key Features

  • Pad-bottom hull delivers ultimate crossover utility and performance
  • 150HP rating
  • Dry, shallow-drafting hull
  • Fold-down rear seats with storage below
  • Rugged, skid-resistant Rawhide™ interior coating
  • Aluminum-framed dual-axle Ranger Trail® trailer



Length 6.35 m 20' 10''
Hull Length 6.35 m 20' 10''
Beam 2.44 m 96''
Max. Recommended HP 150 HP
Engine Shaft Length 50.8 cm 20''
Side Depth 53.34 cm 21''
Hull Thickness 0.3175 cm 0.125''
Bottom Width 1.73 m 68''
Fuel Capacity 105.98 L 28 gal.
Approximate Boat Weight 752.96 kg 1660 lbs.
Rod Box Length - Port 2.59 m 8' 6''
Rod Box Length - Starboard 2.59 m 8' 6''
Max. Person Capacity 5 persons
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 7.52 m 24' 8''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.06 m 23' 2''
Width On Trailer 2.01 m 79''

Motor Options

150 L Pro XS FourStroke
Select Dealer
115 ELPT Pro XS FourStroke Command Thrust
Select Dealer

Standard Features

Custom Details
  • Special 55th Anniversary badging
  • Custom fitted marine upholstery: aluminum leaning post, (1) fold down, (1) bike, dual jump Seats
  • Three-across seat pedestal locations on front and rear decks
  • Rawhide™ coating on gunnel & interior
  • Integrated cup holders / tool holders
  • High gloss metallic paint with custom Ranger® graphics
  • Choice of colors: white, teal, carbon, bay blue, or bay green
  • Windshield w/ stainless steel handrail
  • 2 Deep-cycle trolling batteries w/trays
  • 8 gauge trolling motor wiring
  • MinnKota® Riptide Maxxum 80lb / 52in / Hand / Bowguard / 24V (white) trolling motor
  • Lowrance® Hook Reveal 7 Combo depthfinder @ console
  • On-board lithium capable charger 6A x 3 bank
  • 12V power outlet (USB included)
  • Automatic bilge pump
  • Removable navigation lights
  • Cranking battery with tray
  • Premium steering wheel
  • Binnacle mounted remote throttle control
  • Power trim
  • Bow trim and navigation light switches
  • Custom fiberglass console w/ tach, speed, fuel, trim gauges & easy touch switching
  • Recirculating aerated livewell on front deck
  • Recirculating aerated 25 gal livewell on rear deck
  • Prop (stainless standard at 115HP and up)
  • Tilt hydraulic steering
  • Broad Beam Stability™
  • All-welded construction
  • Console rod rack
  • All welded aluminum transom
  • Fire extinguisher
  • Built-in horn assembly
  • Stainless steel boarding ladder
  • NMMA® certified to ABYC® standards
  • Pull-up tie cleats (4)
  • Heavy duty bow / stern eyes
  • All aluminum floors & decks
  • Upright, level flotation
  • 5052 H34 Marine-grade aluminum
  • Foam-filled one-piece construction
  • Remote drain plug
Trailer Features
  • Custom built Ranger Trail® tandem axle trailer with aluminum frame
  • Aluminum trailer frame w/ galvanized crossmembers and axles
  • Custom Ranger Trail® directional aluminum wheels with spare
  • Leaf-spring axle
  • Swing jack
  • Swing-away tongue
  • Integrated load guides
  • NMMA®/NATM certified
  • LED lighting
  • Hydraulic surge disc brakes on both axles
  • Retractable trailer tie-downs



To view price with dealer prep and freight, use the search box to locate and choose a dealer near you.
